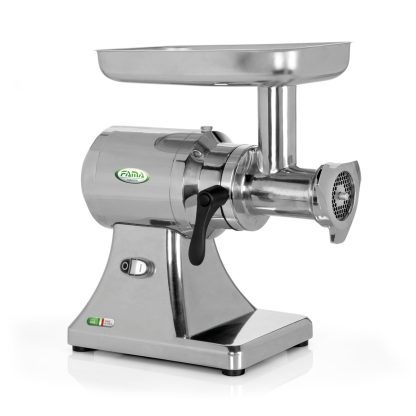

TSK22

• Professional equipment
• Pressure die cast aluminium alloy cover casing
• Speed reducer with oil immersed gears
• Heavy duty Italian make asynchronous motor
• Thermal protection
• AISI 304 stainless steel easy-removable “ENTERPRISE” mincing unit
• Stainless steel self-sharpening draw-plates included
• Stainless steel tray and hopper
• ABS pestle
• 24 volt controls
• Sausage filling kit available on demand
• Gear inversion option availble on demand
• CE approved
• Proudly Made in Italy
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power (Kwatt/Hp)1,10 (1,50)
Power supply (Volt/Hz)230/50 - 230·400/50
Screw revolution (RPM)140
Production per hour (kg)300
Barrel (mm)ø82
Inlet (mm)ø52
Standard plate (mm)ø6
Mincing Groupsinox
Net weight single/three phase (kg)25,0/23,0
Gross weight single/three phase (kg)28,0/26,0
Dimensions (mm)B. 240 D. 490 H. 500
Packaging dimensions (mm)B. 300 D. 480 H. 510
