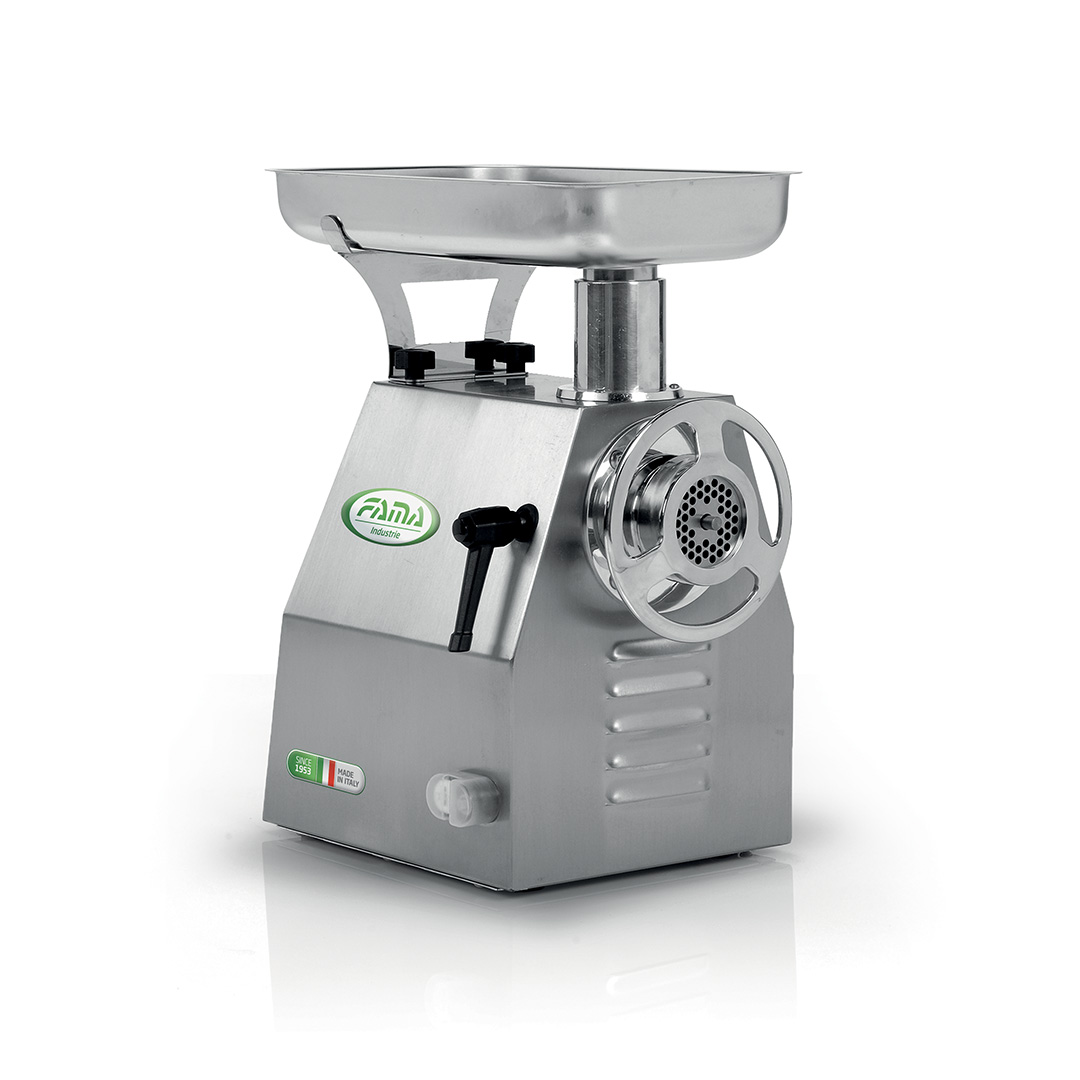

TI22 R

• Heavy duty Professional equipment
• Structured in AISI 304 stainless steel
• Hermetic steel Oil immersed reducer
• Ventilated asynchronous motor
• Thermal protection included
• Easy-removable enterprise mouth unit available in: electroless nikel plated cast iron / anodized aluminium / AISI 304 stainless steel
• Stainless steel self-sharpening draw-plates included
• Stainless steel tray and hopper
• ABS pestle
• Central control system requires 24 volt low tension
• On/off switch protection with waterproof rubber cover
• Sausage filling kit available on demand
• Gear inversion option available
• CE approved
• Proudly Made in Italy
watch the video
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power (Kwatt/Hp)1,50 (2,00)
Power supply (Volt/Hz)230/50 - 230·400/50
Screw revolution (RPM)140
Production per hour (kg)350/400
Barrel (mm)ø82
Inlet (mm)ø52
Standard plate (mm)ø6
Mincing Groupsinox / alluminio / ghisa
Net weight single/three phase (kg)32,0/32,0
Gross weight single/three phase (kg)35,0/35,0
Dimensions (mm)B. 260 D. 450 H. 530
Packaging dimensions (mm)B. 370 D. 590 H. 550
