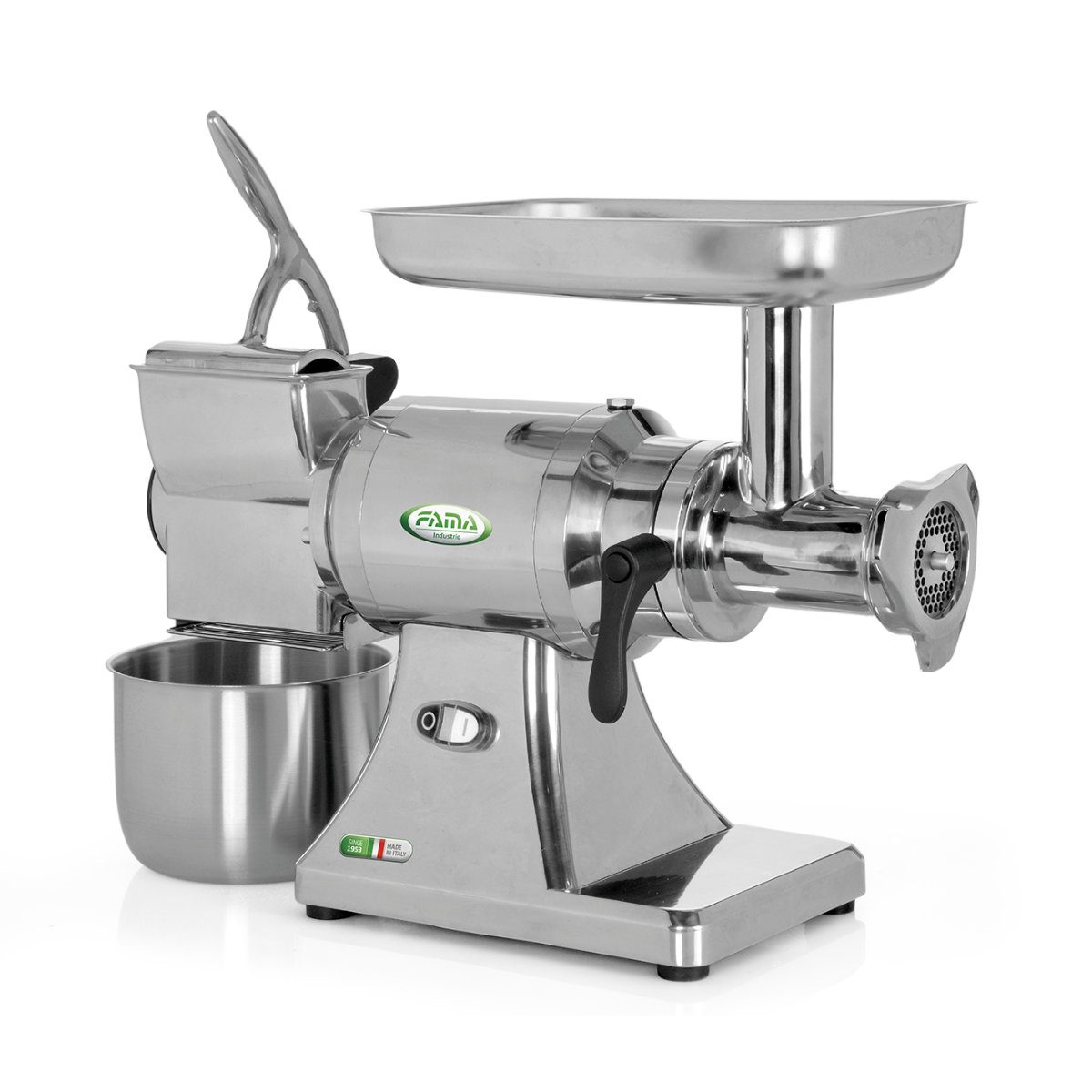

TGK22

• Professional equipment
• Pressure die cast aluminium alloy cover casing
• Speed reducer with oil immersed gears
• Heavy duty Italian make asynchronous motor
• Thermal protection
• AISI 304 stainless steel easy-removable “ENTERPRISE” mincing unit
• Stainless steel self-sharpening draw-plates included
• Stainless steel tray and hopper
• ABS pestle
• Safety micro switch placed on the mouth inlet
• Safety Stainless steel protection grid placed at the bottom of the grating mouth
• 24 volt controls
• Gear inversion option availble
• CE approved
• Proudly Made in Italy
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power supply (Volt/Hz)230/50 - 230·400/50
Power (Kwatt/Hp)1,10 (1,50)
Mincing Groupsinox
Standard plate (mm)ø6
Grater Mouth (mm)140x80
Meat mincer Mouth (mm)ø82
Grater production per hour (kg)70
Meat mincer production per hour (kg)300
Grater (RPM)900
Meat mincer (RPM)140
Gross weight single/three phase (kg)32,0/30,0
Net weight single/three phase (kg)29,0/27,0
Dimensions (mm)B. 240 D. 670 H. 500
Packaging dimensions (mm)B. 280 D. 720 H. 440
