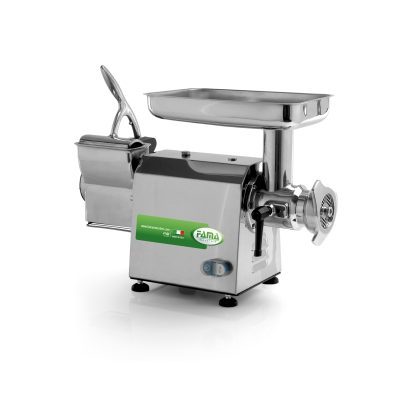

TGI22

• Professional equipment
• AISI 304 stainless steel plated case
• Speed reducer with oil immersed gears
• Italian make asynchronous motor
• Thermal protection
• Easy-removable “ENTERPRISE” mincing unit available in: Electroless nikel plated cast iron / Anodized aluminium / AISI 304 stainless steel
• Stainless steel self-sharpening draw-plates included
• Stainless steel tray and hopper
• Stainless steel grating roll plated with nikel electroless
• AISI 304 roll option is also available
• Stainless steel cheese bowl
• Safety Stainless steel protection grid placed at the bottom of the grating mouth
• Safety micro switch placed on the mouth inlet
• ABS pestle
• 24 volt controls
• Gear inversion option available
• Milled roll available on request
• CE approved
• Proudly Made in Italy
watch the video
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power (Kwatt/Hp)1,10 (1,50)
Power supply (Volt/Hz)230/50 - 230·400/50
Meat mincer (RPM)140
Grater (RPM)900
Meat mincer production per hour (kg)300
Grater production per hour (kg)70
Meat mincer Mouth (mm)ø82
Grater Mouth (mm)140x80
Standard plate (mm)ø6
Mincing Groupsinox / alluminio / ghisa
Net weight single/three phase (kg)28,0/26,0
Gross weight single/three phase (kg)31,0/29,0
Packaging dimensions (mm)B. 280 D. 720 H. 440
Dimensions (mm)B. 220 D. 610 H. 440
