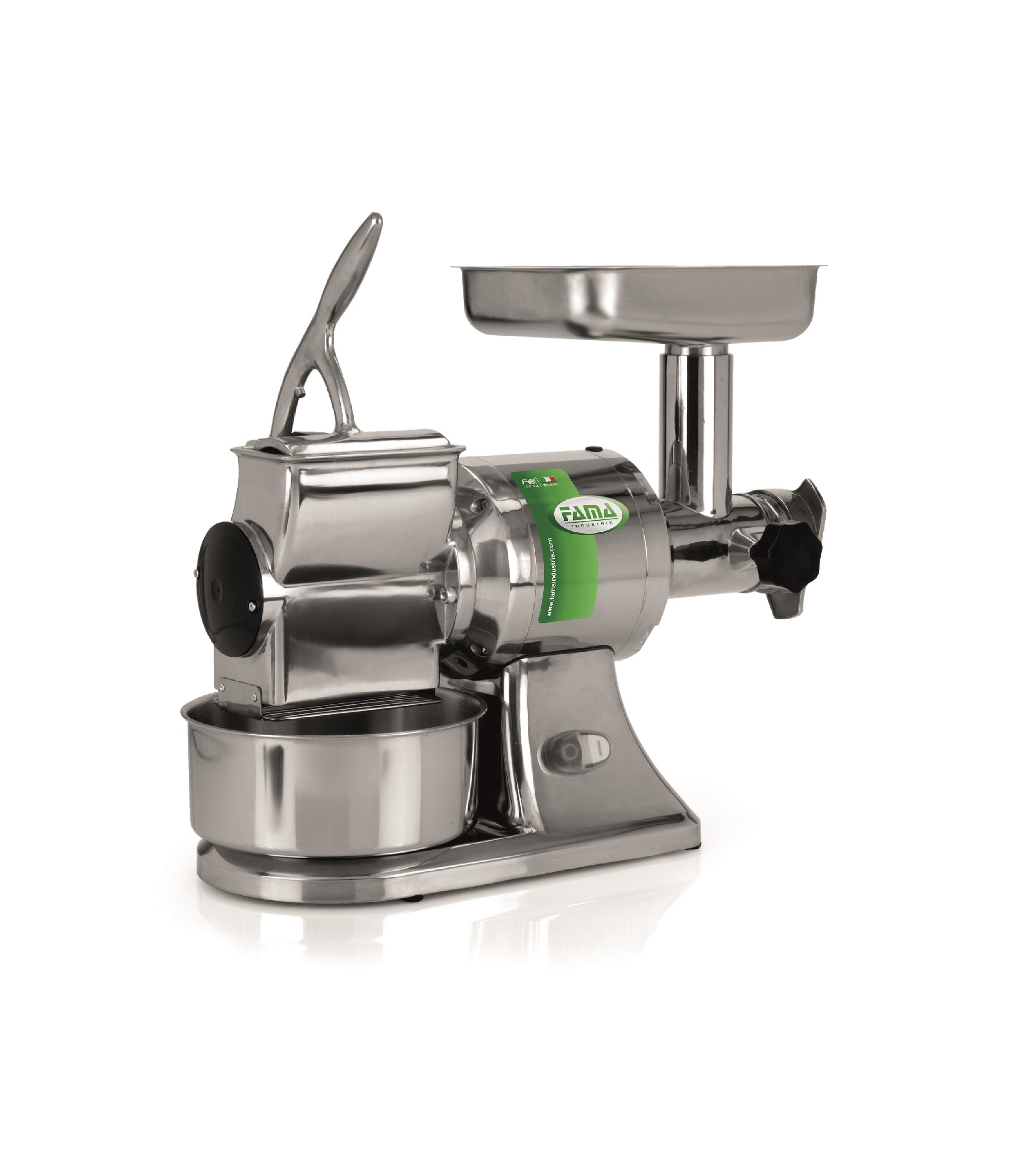

TG12

• Professional equipment
• Made from pressure die cast aluminium alloy
• Elegant stainless steel motor cover band
• Speed reducer with oil immersed gears
• Italian make asynchronous motor
• Thermal protection
• Easy-removable “ENTERPRISE” mincing unit available in: Electroless nikel plated cast iron / Anodized aluminium / AISI 304 stainless steel
• Stainless steel self-sharpening draw-plates included
• Stainless steel tray and hopper
• Stainless steel grating roll plated with nikel electroless
• AISI 304 roll option is also available
• Stainless steel cheese bowl
• Safety Stainless steel protection grid placed at the bottom of the grating mouth
• Safety micro switch placed on the mouth inlet
• ABS pestle
• 24 volt controls
• Gear inversion option available
• CE approved
• Proudly Made in Italy
watch the video
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power (Kwatt/Hp)0,75 (1,00)
Power supply (Volt/Hz)230/50 - 230·400/50
Meat mincer (RPM)200
Grater (RPM)1400
Meat mincer production per hour (kg)200
Grater production per hour (kg)50
Meat mincer Mouth (mm)ø70
Grater Mouth (mm)140x80
Standard plate (mm)ø6
Mincing Groupsinox / alluminio / ghisa
Net weight single/three phase (kg)22,0/20,0
Gross weight single/three phase (kg)25,0/23,0
Packaging dimensions (mm)B. 290 D. 600 H. 430
Dimensions (mm)B. 200 D. 550 H. 460
