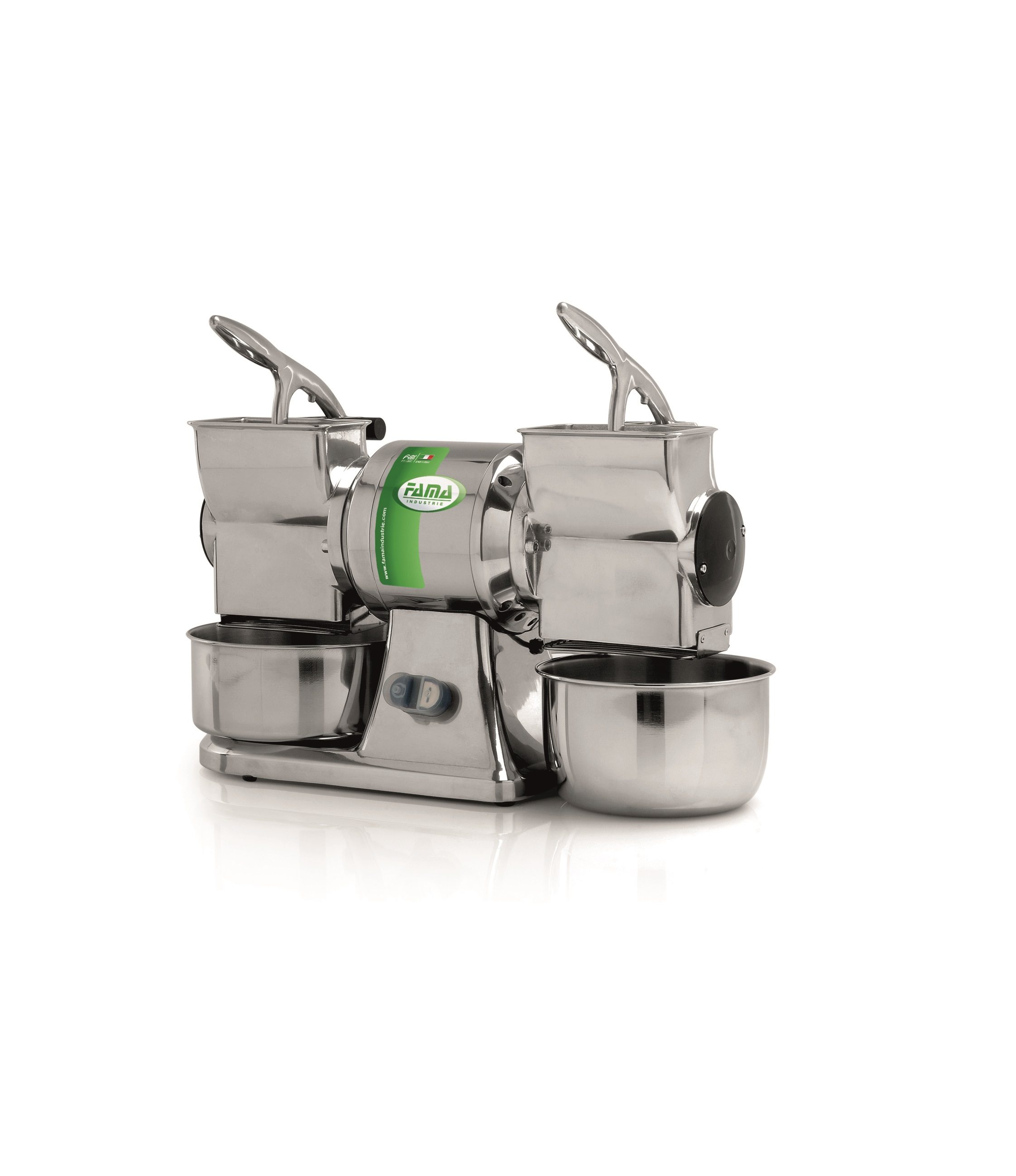

GD Double Grater

• Professional equipment
• Structured in polished pressure die cast aluminium alloy
• Elegant stainless steel motor cover band
• Heavy duty Italian make asynchronous motor with thermal protection included
• Without motor brake
• Stainless steel grating roll plated with nikel electroless
• AISI 304 roll option available on demand
• Milled roll available on request
• Stainless steel cheese bowl
• Safety stainless steel protection grid placed at the bottom of the grating mouth
• Safety micro switch placed on the mouth inlet
• 24 volt controls
• CE approved
• Proudly Made in Italy
Ask for informations
download PDF
Fill out the form





share

Technical sheet

Power supply (Volt/Hz)230/50 - 230·400/50
Power (Kwatt/Hp)0,75 (1,00)
Rounds / m grater1400
Grater production per hour70
Grater Mouth140x80
Stamped grater roll140x75
Net weight single/three phase (kg)21,0/21,0
Gross weight single/three phase (kg)24,0/24,0
Dimensions (mm)B. 220 D. 540 H. 380
Packaging dimensions (mm)B. 300 D. 470 H. 520
